March 2004. Going high-tech for the rear lights.
Original lights did not incorporate indicator lights (the car uses
trafficators). In the name of safety I decided to construct a LED version
of the rear light, incorporating indicator lights, but stayed original on
the outside. 20 hours of work and 90 U.K pounds later everything was
working!
|
|
|

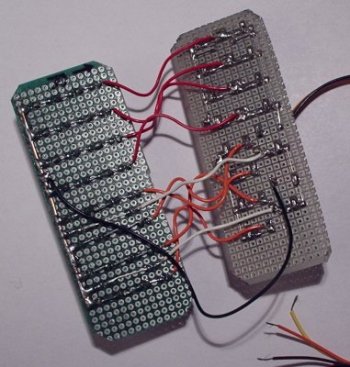

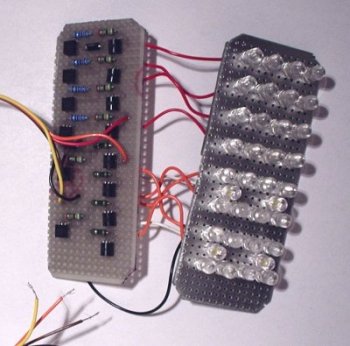

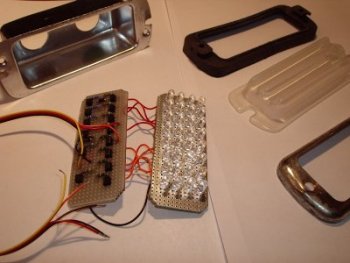

I constructed 2 printed circuit boards, one with a matrix of
high-intensity LEDs and the other with the driving circuitry (constant
current sources). |
|
|

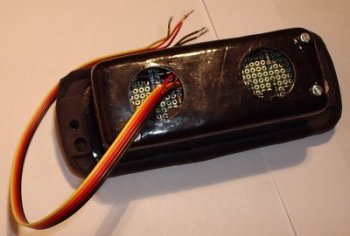

The printed circuit boards were made to fit into the
original light housing. |
|
|

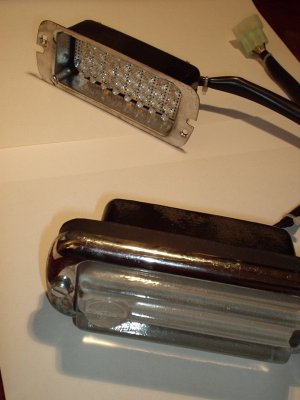

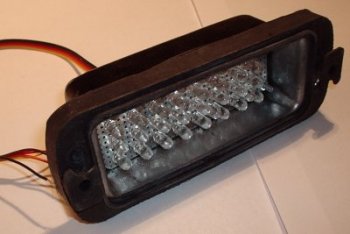

Final assembly is ready to be fitted to the car. The holes at
the rear, where the cable is coming out, were later sealed with silicone. |
|
|

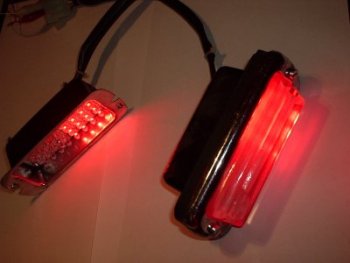

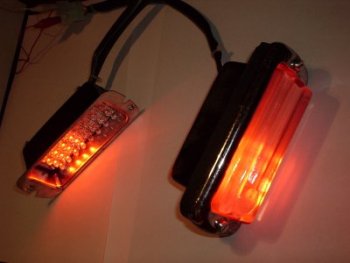

Brightness is significantly improved compared to the
original 21/5W bulb solution. |
|
|
A
modern switching unit has been used for the indicator lights, however, it
had to be modified because the power consumption of the LEDs is very small
and triggered the switching unit into thinking that one of the bulbs was

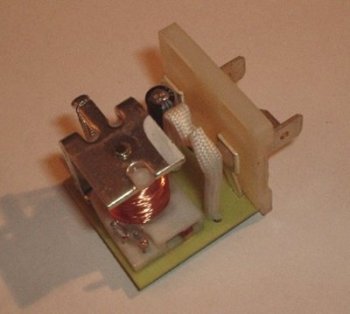

burnt out, which then flashed too quickly... The original load resistor
(wire covered with white fabric protection) shown on the left photo, has

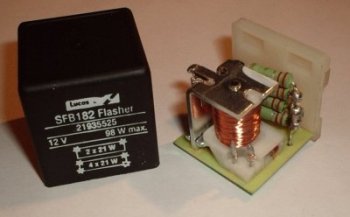

been substituted with an array of 4 parallel resistors of double total
resistance compared to the original, right photo. |
